Tips and Tricks for Scoring Metal

2 Minute Read

By Charles Lewton-BrainMore from this author

Scoring metal is incredibly important for custom jewelry construction. It enables you to reduce the number of parts in a catch or a hollow piece, which increases strength and cuts fabrication time. The term "scoring" refers to creating a groove in metal sheet and then bending it up and soldering it from the back to strengthen the seam.

There are many ways to make such a groove, from chemical milling (spray etching) to hand working. The following are some examples:

Separating discs for scoring

For very sharp, precise bends and the most control in scoring, I learned to use silicon carbide separating discs while working in Germany. We could build a box catch in an hour from start to finish this way because the discs take the place of files and saw blades in constructing jewelry. Straight lines work well, and curved lines allow for greater design options.

To use separating discs for successful scoring, try the following tips:

  • Let the disc drift away from you, not toward you.
  • Use beeswax to increase the cutting speed and bind debris into a paste on the surface.
  • If the disc wears, you are pressing too hard. Use a higher speed and let the disc drift off before you reach the far side to keep it from coming back across the front.
  • The sheet is ready to be bent when you see a distinct raised line on the front.

Wire for scoring

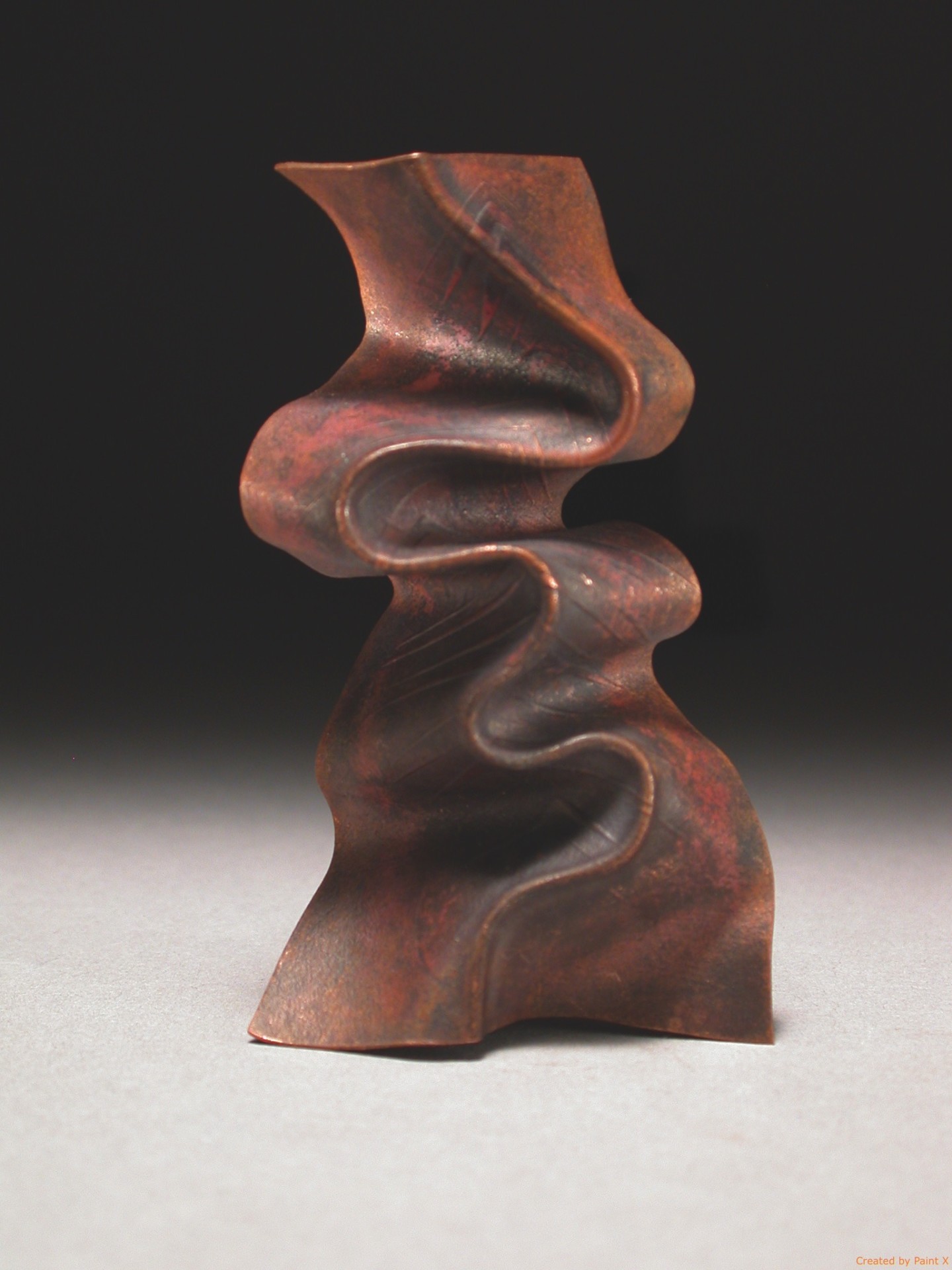

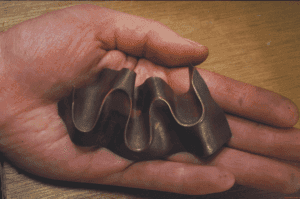

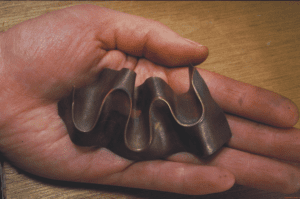

Using wire for scoring can be even faster and easier than using separating discs. Hard or small wires can produce sharper bend edges while softer, larger wires produce a wider bend that allows for greater design options.

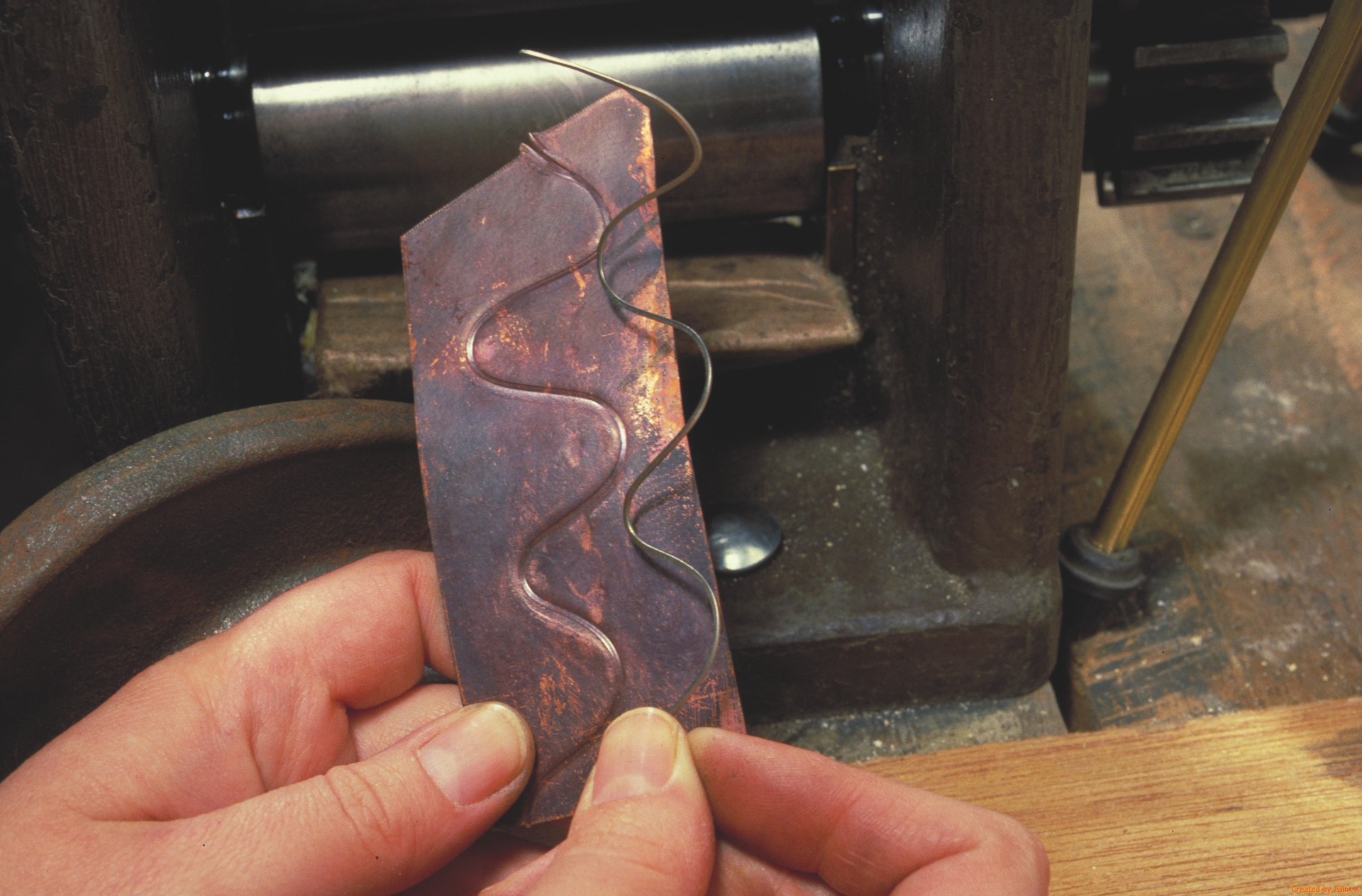

To score using a wire, begin by bending it to the desired shape of the score. Place it on the sheet metal to be bent (I use masking tape to keep it in position), then press it into the sheet to the desired depth using a planishing hammer. Watch the visual spread of the wire and keep it the same width in order to maintain an even depth of pressure.

You can also use a rolling mill to push the wire into the sheet. Before trying this with precious metals, run copper and brass samples until you are satisfied with the results.

Generally, I use 0.5 mm (24 gauge) sheet metal for scoring, but thinner or thicker material can be used. I like to use 20 gauge or 18 gauge soft iron binding wire for that thickness, but brass wire also works. Very hard wires, such as welding wire, cut the metal easily but can offer very sharp bends if you control how far in the wire is pushed. The softer the wire you use, the broader the resulting score.

Straight line scoring with the wire is easy: Just stretch the wire to make it straight and press it in. I find that it is useful to practice the score you are after in a hard paper, such as a manila file folder. Score the paper with a scribe or point, then bend it up to see what will result in sheet metal.
