Millimeter Gauge Layout Technique

Meticulous planning and tedious layout are a big part of a goldsmith’s life at the bench. It usually pays dividends to thoughtfully plan gemstone layout for graver setting. If you’re off by just 0.1 mm in one direction or another, you can sometimes visually ruin the aesthetics of an expensive project that is near completion, and in so doing ruin your day.

But once in a while the time to plan just doesn’t exist. Bridezilla decides at the very last minute that she wants those accent stones after all–the ones that you planned for in your design but agreed to add later on the first anniversary. Or maybe you just forgot that project lurking at the corner of your bench. The client just left in a huff and if she can’t pick it up after lunch, well…you can just forget it.

Enter my quick-and-dirty layout technique to the rescue. A relatively common millimeter gauge is all that is necessary to quickly lay out a line of gemstones on metal (or wax), and the process is deceptively simple.

Ganoksin is sponsored by

Using a Millimeter Gauge to Place Gems for Graver Setting

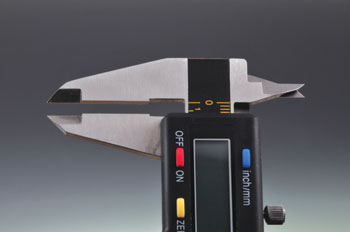

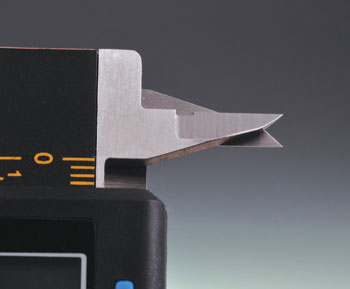

The gauge I’m talking about has two ends; one is for measuring the outside diameter (OD) of an object, and the other is for measuring the inside diameter (ID). The cool thing here is that on many of these tools, the ID side comes to a fairly sharp point.

Using a Millimeter Gauge to Place Gems for Graver Setting

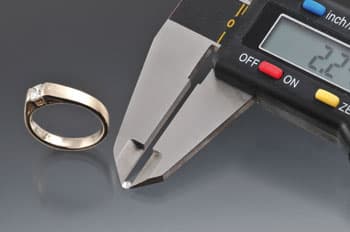

If the gems are all the same size, the following process is nearly foolproof and very quick. Once you have determined the placement of the first stone, measure one of the stones with the OD side of the gauge and then back off just a couple of hundredths of a millimeter.

Using a Millimeter Gauge to Place Gems for Graver Setting

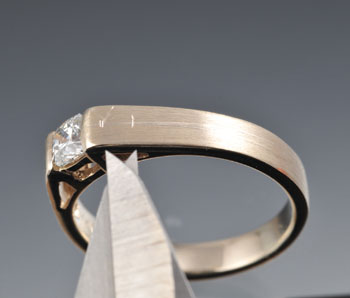

Backing off this tiny distance will allow for some drill drift and slight variation in gem sizes, and ensure that your gems don’t overlap girdles. Use the thumbscrew to lock in that distance and then use the pointy ID side of the tool to mark the placement for the next gem.

Ganoksin is sponsored by

Using a Millimeter Gauge to Place Gems for Graver Setting

You can walk the tool down the row using the ID side of the gauge to place each gem. Punch, drill, ream, and set from these marks.

If you are using graduated gems to set a tapered row, you will need to do some simple math. Add the OD of two gems and halve that figure to get the correct placement distance for those two gems, then repeat down the row.
