Laser Repair: Emerald & Diamond Ring


3 Minute Read

It seems like a lot of laser repairs involve emeralds. I recall the Indiana Jones movies where "Indy" comes face to face with a snake (or snakes). "Snakes, I HATE SNAKES!" Have you ever been overheard saying, "Emeralds, I hate emeralds!" Only the bench jeweler would say this. Let me qualify that statement… only the bench jeweler who does not have a laser, or access to a laser, would say this.

Trying to do repairs in close proximity to emeralds or other stones that are heat sensitive can be, at best, a challenge to most bench jewelers, even the most experienced. Though lasers do not remove ALL risk in repair of these items, they do make the prospects of a successful repair much greater. This is another example of what you can do with a laser.

Emerald and Diamond Ring Repair Using Laser Technology

Here's the problem. Your customer gives you an emerald ring that has some prongs in need of repair. The ring is 18k yellow gold and the emerald is substantial. You could attempt to remove the emerald and repair the ring using traditional torch/solder methods. If you do remove the stone, there is a risk you might chip or break it during the removal or resetting process. If you use a laser, in this instance, you can leave the stone in place and you can do the following.

Laser Repair: Emerald and Diamond Ring Repair

As with ANY repair, ALWAYS inspect and document any problems with the item. One really good way to document a repair take in is to take a close-up photo of the piece.

image_2

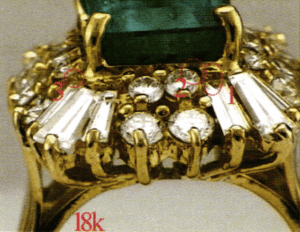

I took some pictures of the ring and used my photo-editing
program to identify
 the problems of the
 ring. Notice that I
 indicated the location
of the karat stamp. If
a ring is symmetrical,
it is important to give a
point of reference wit h
regard to the location
of problems in case questions a rise later about your work. In this case I numbered the locations as well.

After an estimate of the cost to do the work and the approval of the customer, I began repairing the ring.

The first priority when laser welding an item like this is to consider how you will protect stones and finishes. If you have seen previous articles on this subject, you know several approaches can be used. In this case I chose two particular approaches for protecting "my interests."

image_3

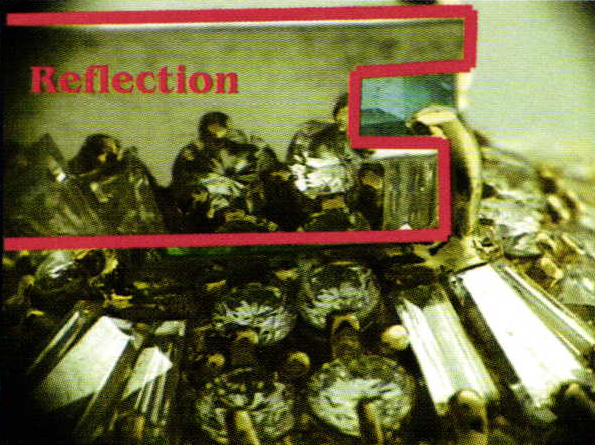

The first approach is the high polished sterling silver template. Notice the reflection of the stones on the template. Since laser pulses are light, and silver when highly polished is highly reflective, it is a good protective device. Just be sure to keep the silver template polished and free of oxidation or you will run the risk of welding the template to your ring. (I outlined the template in red to show you its shape.)

image_4

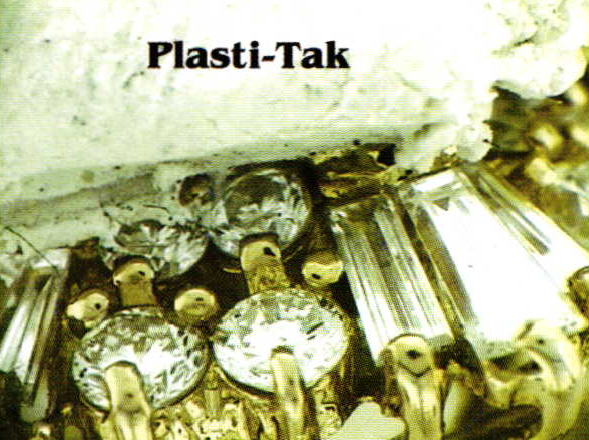

The other approach to protecting the stone is using Plasti-Tak. This substance is good for protecting surfaces and stones and is quite versatile. I use these two items 95% of the time when
 welding items with
 sensitive stones or finishes. One advantage
of Plasti-Tak over
 the sterling template is
 that you can use both
 hands to do the work;
 with the template you
only have one hand
free to hold the item and the welding wire.

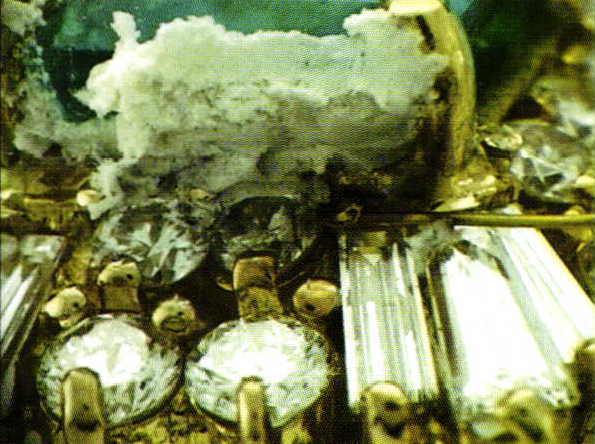

Once you have protected the stone you can begin welding. The comer of the baguette diamond and one side of the round diamond
in the center of the
 picture is in need of
 prong work. Using
30 gauge gold wire, I
 rebuilt the prongs in
 their proper place.

image_5

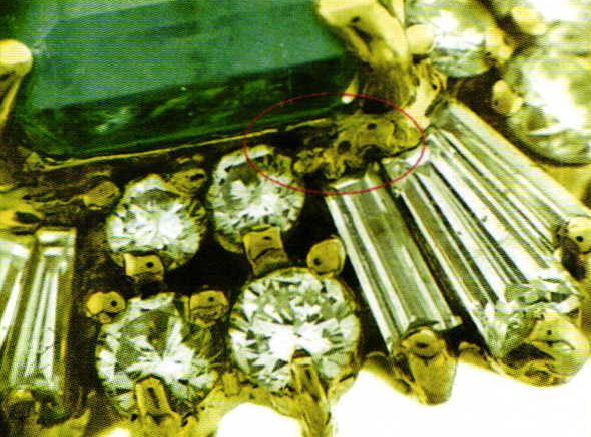

The area enclosed
 in the red ellipse is
the place where the
prongs were rebuilt.
 This picture was taken prior to finishing and polishing.

image_6

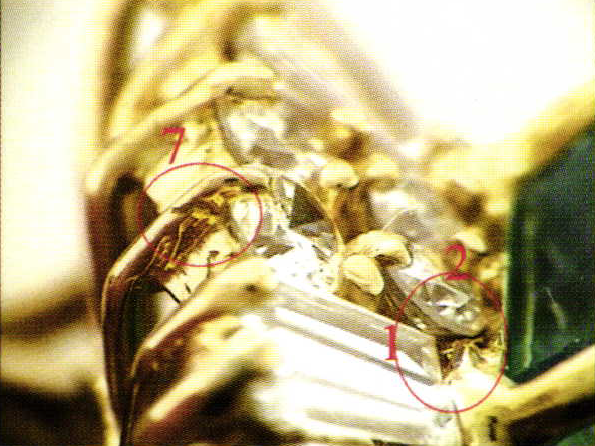

Notice how close the weld zone is to the emerald.

image_7

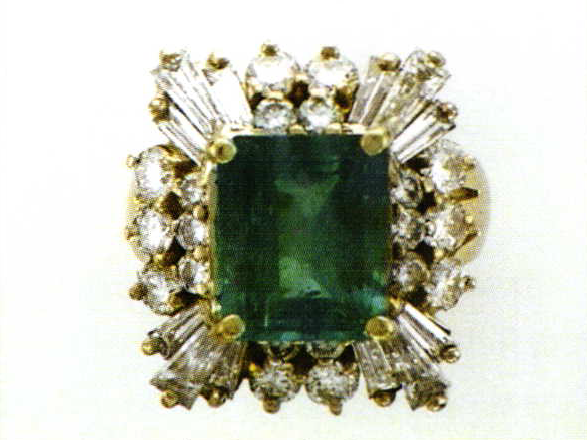

The repair is completed. Your customer is elated. As for the snakes… well that's for the sequel!

By Bob Staley – © Bench Magazine – 2004 Spring
